• 7Y1430 7Y-1430 Sun Gear Excavator Final Drive Fitting For 315C 315D L 318B 318C 318E L

• Specification

Application	C A T excavator final drive
Name	Sun gear
Parts No	7Y1430 7Y-1430
Model	315C 315D L 318B 318C 318E L 319C 319D 319D L 319D LN 320 L 320B 320C 320C FM 320C L 320D 320D FM 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 320N 321B 321C 321D LCR 322 322 FM L 322 LN 322B 322B L 322B LN 323D L 323D LN 323D2 L 323E L
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Function

1.Power input and transmission: As a key component of the planetary gear system, the sun gear is usually the power input end. It is connected to the power output device of the engine or transmission, and can receive the power transmitted from the engine, and then transmit the power to the planetary gears meshing with it, providing power support for the subsequent movement of the excavator.

2.Torque conversion and speed regulation: Through the meshing relationship with the planetary gears and the ring gear, the sun gear can realize the conversion of torque and speed. According to the working principle of the planetary gear system, when the ring gear is fixed, the rotation of the sun gear will drive the planetary gears to rotate around it.

• Applicable models

EXCAVATOR 315C 315D L 318B 318C 318E L 319C 319D 319D L 319D LN 320 L 320B 320C 320C FM 320C L 320D 320D FM 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 320N 321B 321C 321D LCR 322 322 FM L 322 LN 322B 322B L 322B LN 323D L 323D LN 323D2 L 323E L

• More gear parts supplied to C A T machine

7Y0674 GEAR-SUN

325 L, 330, 330 FM L, 330 L, OEMS

7Y0659 GEAR-PLANET

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0639 GEAR-SUN

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0673 GEAR-RING

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0641 GEAR-COUPLING

325 L, 330, 330 FM L, 330 L, OEMS

7Y0642 GEAR-RING

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

1107229 GEAR-RING

330B, 330B L, OEMS

1107231 GEAR-SUN

325C, 328D LCR, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

1107232 GEAR-SUN

330B, 330B L, OEMS

1107233 GEAR-PLANETARY

330B, 330B L, OEMS

7Y1504 GEAR-PLANETARY

330, 330 FM L, 330 L, 330C, 330D L, 330D MH, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L HVG, 349E L VG, 349F L, 350, OEMS

1695560 GEAR-COUPLING

330C, 345B, 345B II, 345B II MH, 345B L, 350, OEMS

1252950 GEAR AS

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 3...

5I7558 GEAR AS

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320...

3689995 GEAR

311D LRR, 311F LRR, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR, 315D L, 316E L, 318D L, 318D2 L, 318E L

2408362 GEAR & BEARING GP-SWING

308C, 308D, 308E, 308E CR, 308E SR, 308E2 CR

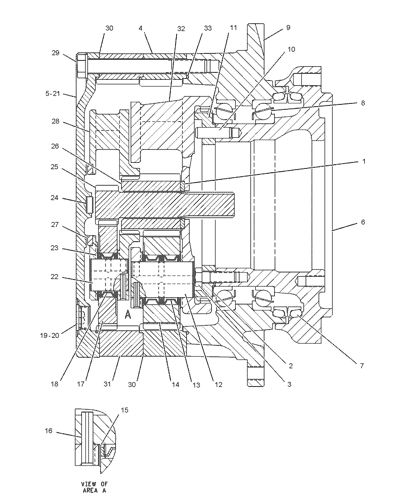

• Catalog part list

Pos.	Part No	Qty	Parts name	Comments
1	7Y-1434	[1]	SPACER (40X69.5X6-MM THK)
2	096-1773 B	[1]	SHIM (0.15-MM THK)
	096-1774 B	[1]	SHIM (0.3-MM THK)
	096-1775 B	[1]	SHIM (0.4-MM THK)
	096-1776 B	[1]	SHIM (0.5-MM THK)
	096-1777 B	[1]	SHIM (0.60-MM THK)
	096-1778 B	[1]	SHIM (0.70-MM THK)
	096-1779 B	[1]	SHIM (0.80-MM THK)
	096-1780 B	[1]	SHIM (1-MM THK)
	096-1781 B	[1]	SHIM (1.60-MM THK)
3	6V-5686 M	[16]	BOLT (M16X2X50-MM)
4	102-6456	[1]	GEAR-RING (79-TEETH)
5	095-1270 M	[2]	SETSCREW-SOCKET
6	7Y-1438	[1]	HOUSING-MOTOR
7	093-1425	[1]	SEAL GP-DUO-CONE
8	096-6412	[2]	BALL BEARING
9	7Y-1437	[1]	HOUSING
10	093-7828	[4]	DOWEL
11	7Y-1436	[1]	GEAR-COUPLING
12	7Y-0223	[3]	SHAFT-PLANETARY
13	094-1542	[6]	BEARING-ROLLER
14	7Y-1431	[3]	GEAR-PLANETARY (44-TEETH)
15	094-1528	[6]	WASHER (53X84X1-MM THK)
16	095-0891	[6]	PIN-SPRING
17	6I-6585	[3]	GEAR-PLANETARY (44-TEETH)
18	094-0616	[3]	BEARING AS-ROLLER
19	3E-2338	[2]	PLUG-PIPE
20	7M-8485	[2]	SEAL-O-RING
21	7Y-1426	[1]	COVER
22	7Y-0225	[3]	SHAFT-PLANETARY
23	094-0611	[6]	WASHER (47.3X76X1-MM THK)
24	094-0580	[1]	PLATE (10-MM THK)
25	6I-6583	[1]	GEAR-SUN (13-TEETH)
26	7Y-1430	[1]	GEAR-SUN (17-TEETH)
27	7Y-1558	[1]	SPACER (90X119.6X7.5-MM THK)
28	7Y-1432	[1]	CARRIER
29	7X-2568 M	[16]	BOLT (M20X2.5X180-MM)
	8T-4123 M	[16]	WASHER-PLATED (22X35X3.5-MM THK)
30	1U-8846 B		SEALANT-GASKET
31	102-6454	[1]	GEAR-RING (104-TEETH)
32	7Y-1433	[1]	CARRIER
33	6D-0692	[1]	SEAL-O-RING
	B		USE AS REQUIRED
	M		METRIC PART

• Other hot selling parts

1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft

2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y

3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y

4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder

5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve

6.Electrical parts: Wiring harness, Controller, Monitor

7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
